HTP 100 THREE STATION HIGH TEMPERATURE PIN ON DISC

HIGH THROUGHPUT TRIBOMETER





  •


    • Single function
    • Multi-station
    • Simple to Operate
    • Control via PLC
    • Data exported on USB stick




    Description

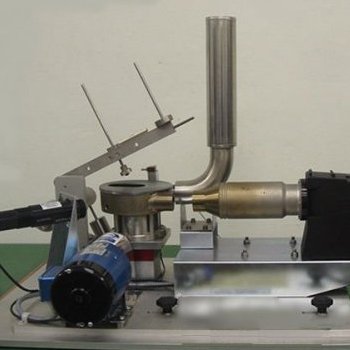

    This instrument is a development of an earlier product, the TE 98 High Temperature Pin on Disc Machine.

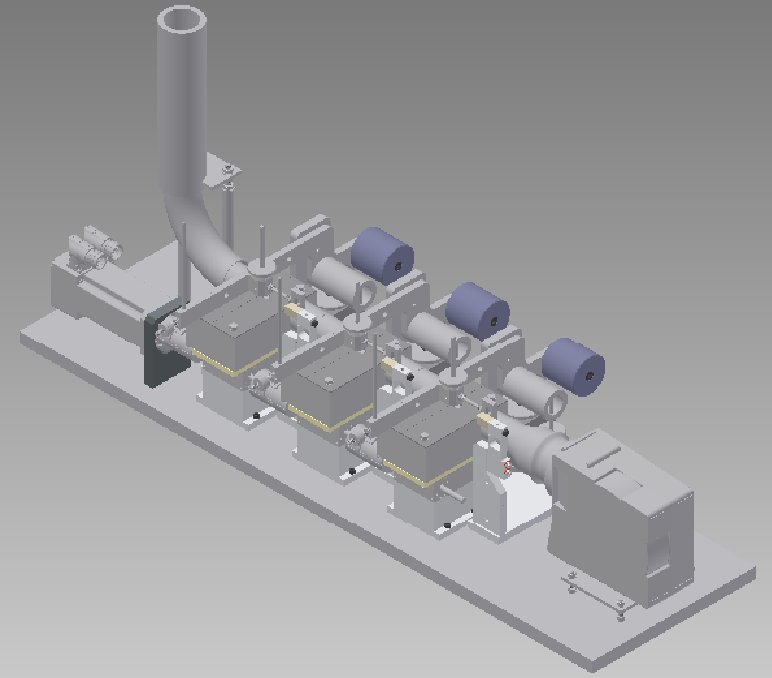

    The unit incorporates three conventional pin on disc test assemblies, generally in compliance with ASTM G99. It is designed for running dry pin on disc tests at temperatures from ambient to 500°C. Non-contact heating of the specimens is provided by an electrically heated hot air gun.

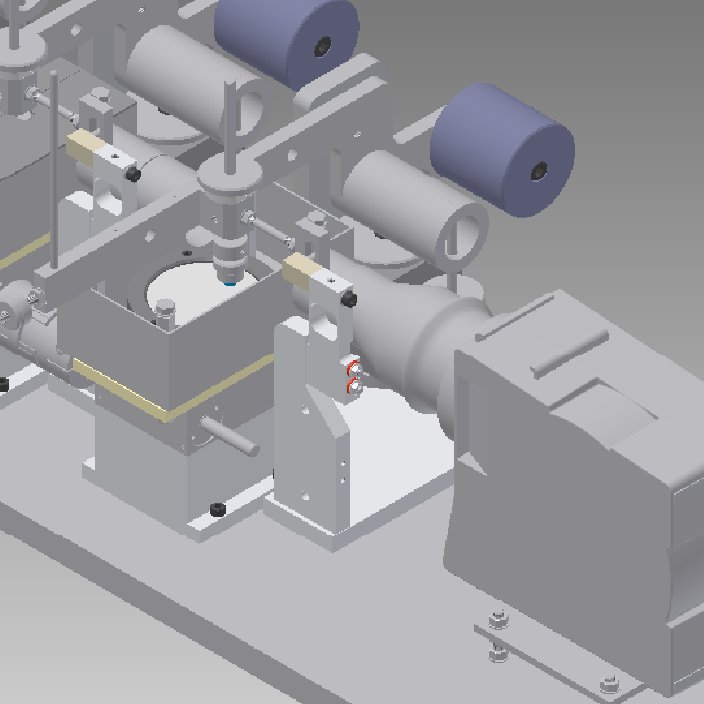

    Loading is by dead-weight and a force transducer is fitted to each test station, so that friction for each contact is measured independently.

    Loading is by dead-weight and a force transducer is fitted to each test station, so that friction for each contact is measured independently.

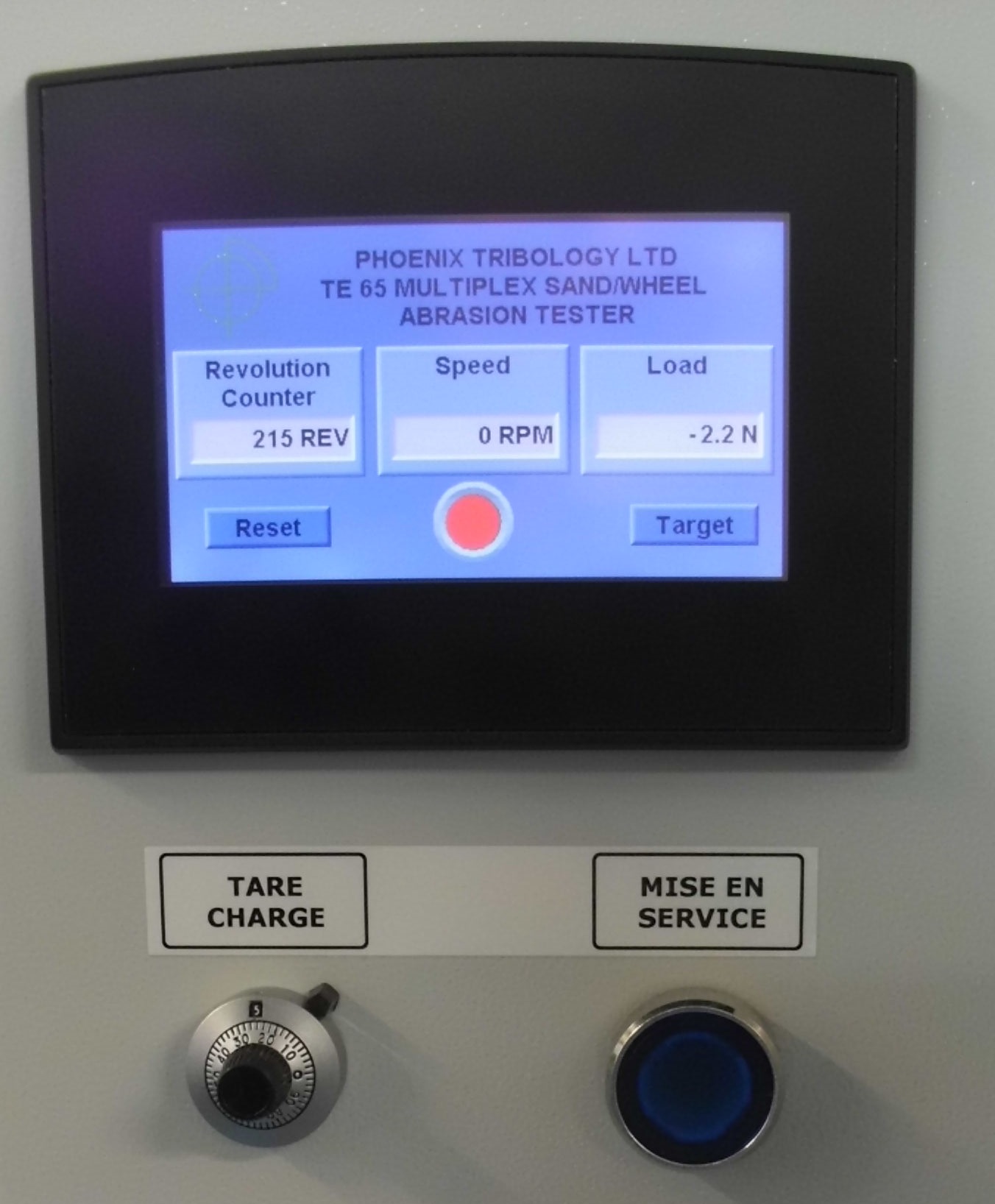

    The machine is designed to be bench-mounted, with installation footprint kept to a minimum. It is simple to operate, so requires minimal training. Control is implemented with a PLC, with inputs via touch-screen. Data is stored by the device and exported on USB stick.

  • Specifications

    Motion Rotary
    Load 1 to 60 N
    Diameter 75 mm
    Speed 2 to 200 rpm
    Temperature Ambient to 500 °C
    Test Stations 3
    Manually Set Parameters
    Load Yes – dead-weight
    Rotational Speed Yes
    Temperature Yes
    Test Duration Yes
    Data Logged Parameters
    Temperature Yes
    Friction Force Yes – each sample
