Description

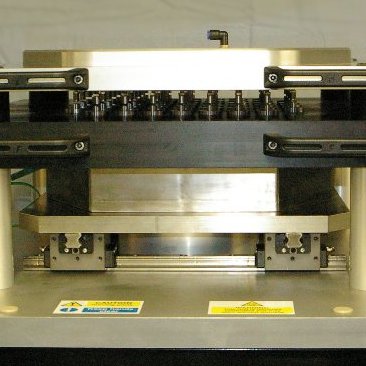

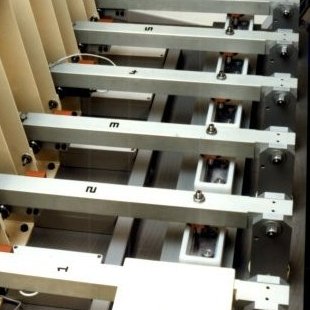

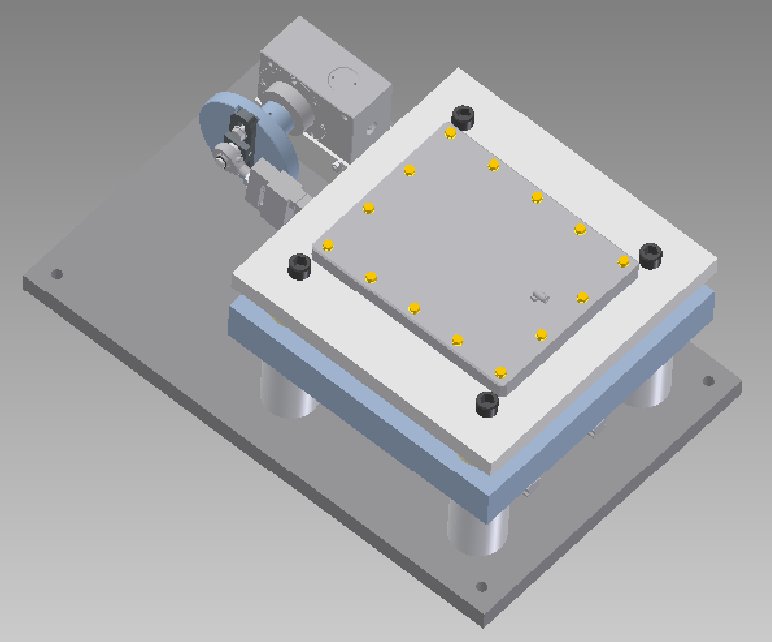

This machine is a long stroke pin on reciprocating plate machine combining features from two established products, the TE 87 Circular Translation Pin on Disc the TE 88 Multi-station Friction & Wear Tester.

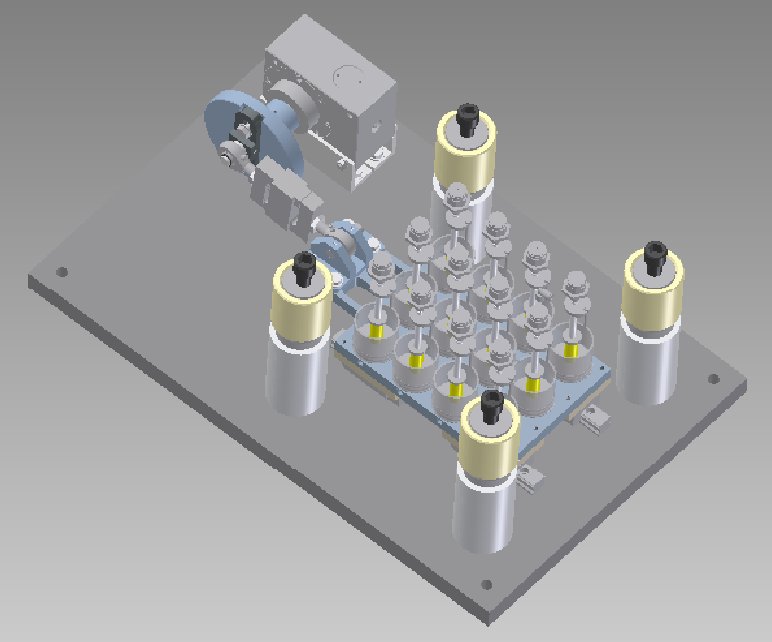

Load is applied to each test station by means of pneumatic cylinders, connected in parallel. Pressure to the cylinders is manually controlled by means of a precision pressure regulator.
Test stations assemblies can be removed from the machine base for cleaning and test preparation.

An in-line force transducer is included for sensing the total friction generated by the twelve test samples. Note that test stations can be disabled for friction experiments on fewer specimens, if required.

The machine is designed to be bench-mounted, with installation footprint kept to a minimum. It is simple to operate, so requires minimal training. Control is implemented with a PLC, with inputs via touch-screen. Data is stored by the device and exported on USB stick.
