TE 37 BOWDEN-LEBEN MACHINE







  •



    Description

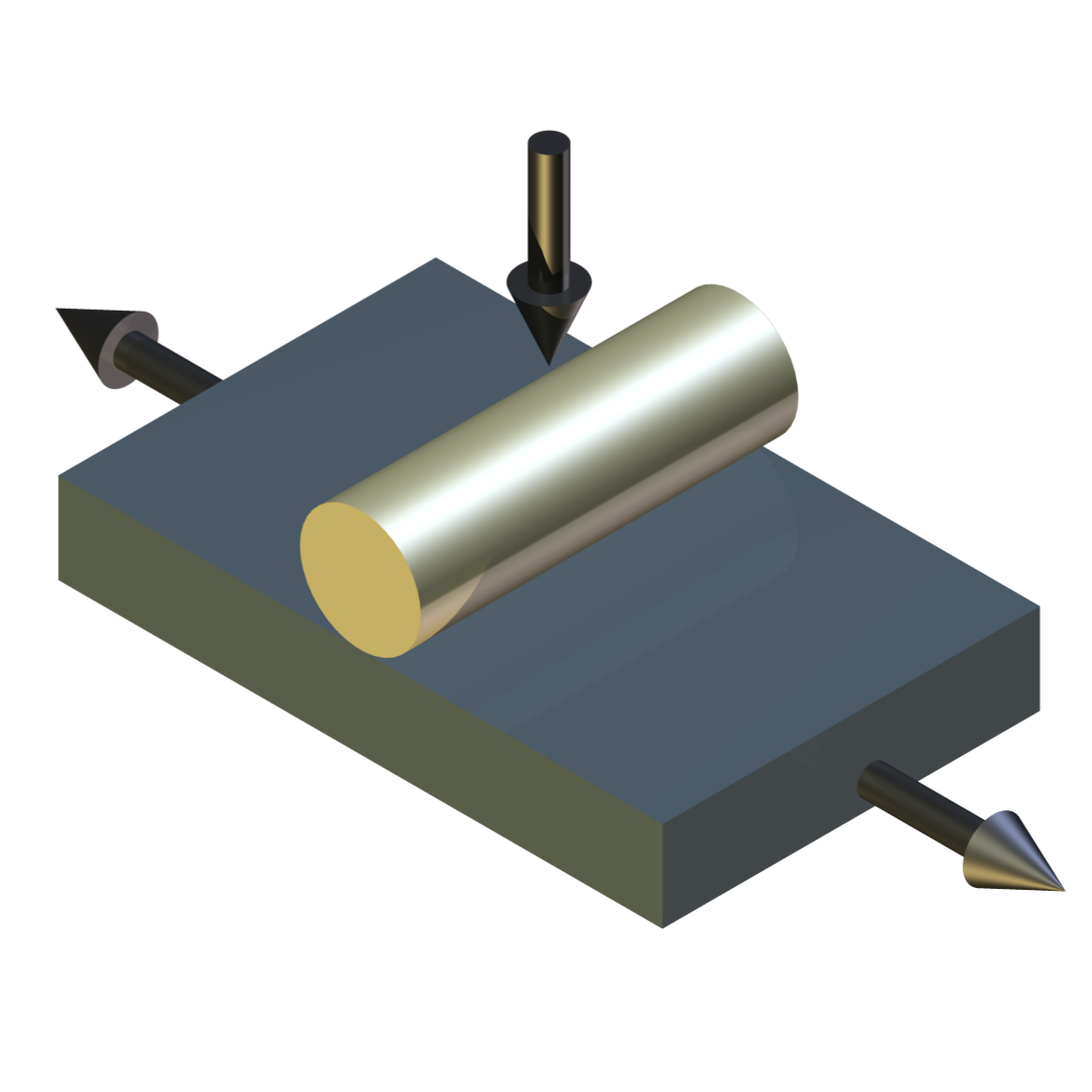

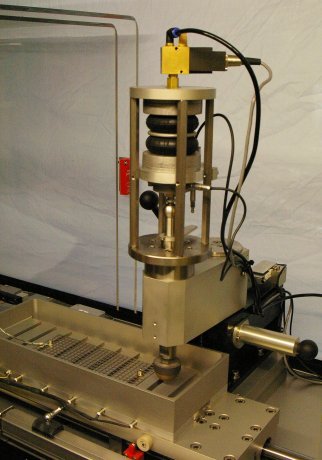

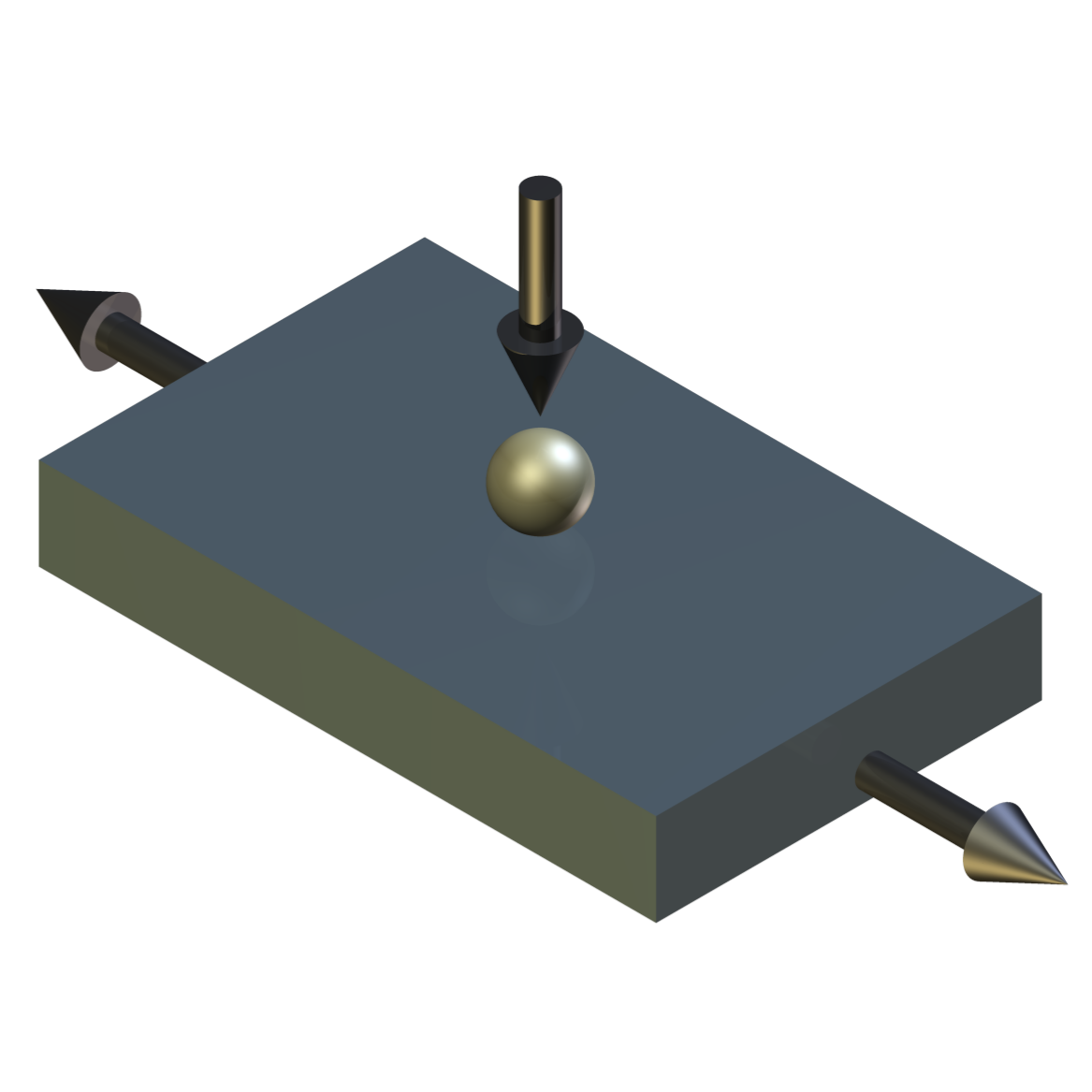

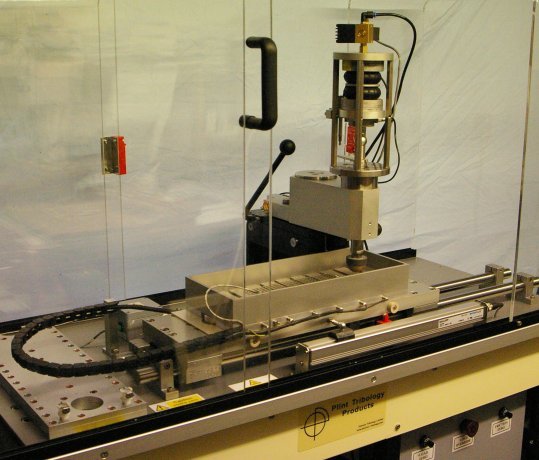

    The TE 37 Bowden-Leben machine is a conventional long stroke, low speed, reciprocating tribometer, combining an electro-mechanical ball-screw actuator and linear slide with the proven loading and friction measuring assembly of the TE 67 Pin on Disc Machine.

    The pin specimen carrier assembly consists of a massive aluminium block pivoted about a vertical axis through its centre. A precision piston with a pin specimen holder is loaded vertically downwards directly above the contact point, by means of a servo-controlled pneumatic bellows, with a load range of 25-1,000 N at 7.5 bar operating pressure. An in-line compression load cell measures the applied load and provides load feedback for control. Both steady and fluctuating loads with a sine or triangular waveform can be applied.

    The entire pin carrier assembly can be rotated out of its locked horizontal position thus separating the contact and allowing access for changing specimens and examining the surfaces.



    A strain gauge load cell is mounted at the rear of the pin carrier block, preventing the block pivoting about its central axis. This transducer therefore measures the force exerted on the pin during sliding. A retaining clamp maintains the pin carrier in contact with the transducer at all times, ensuring that bi-directional forces generated in pin on disc and reciprocating contacts are measured.

    An indication of wear processes going on in the contact is given by an LVDT mounted in the loading assembly. This transducer measures the movements of the piston during a test.

    The pin loading capsule is electrically isolated from the carrier block and therefore from the specimen. This allows a small potential to be applied across the pin/disc contact from a Lunn-Furey Contact Resistance Circuit.

    A large specimen bath is provided with both a heater pad and a cooler pad. In addition to conventional small pin or ball on plate type samples, the bath is large enough to accommodate large diameter area contact specimens, with a maximum contact diameter of 50 mm. The bottom of the bath has T-slots allowing ready fixing of different contact surfaces.

  • Technical Specifications

    Maximum Load on Stage: 2500 N
    Actuator Maximum Stroke: 280 mm
    Maximum Sliding Speed: 100 mm/s
    Maximum Repetition Rate: 0.3 Hz
    Load Range: 50 to 2500 N
    Cyclic Loading Amplitude: Up to 50% of set point
    Cyclic Loading Type: Sine wave or triangular wave
    Cyclic Loading Rate: 1 Hz maximum
    Load Bellows Capacity: 420 N/bar
    Bellows Maximum Pressure: 8 bar
    Air Pressure for 2500 N: 6 bar
    Friction Force: 0 to 50 N and 0 to 2,000 N
    Displacement Measurement:
    Range: 0 to 2.5 mm (LVDT)
    Resolution: 1 µm
    Maximum Bath Temperature: 200°C
    Data Acquisition: 12 bit resolution @ maximum 10 Hz
    Controlled Parameters Load
    Traverse Speed
    Stroke Length
    Traverse Speed Profile
    Sample Lift, Drop and Dwell
    Test Duration
    Recorded Parameters Load
    Traverse Speed
    Stroke Displacement
    Friction Force
    Specimen Displacement
    Temperature (Ambient/Sample)
    Number of Cycles
    Test Duration
    Friction Coefficient
    Sliding Distance
    Services
    Electricity: 220/240V, single phase, 50 Hz, 3 kW
    110/120 V, single phase, 60 Hz, 3 kW
    Clean, dry air: 0.4 cubic metres per minute at 8 bar
